Galvanized Steel Noise Barrier Wall High-Density Soundproof for Highway & Railway

You are here: Home » Products » Engineering & Construction Series » Noise Barrier Wall » Galvanized Steel Noise Barrier Wall High-Density Soundproof for Highway & Railway

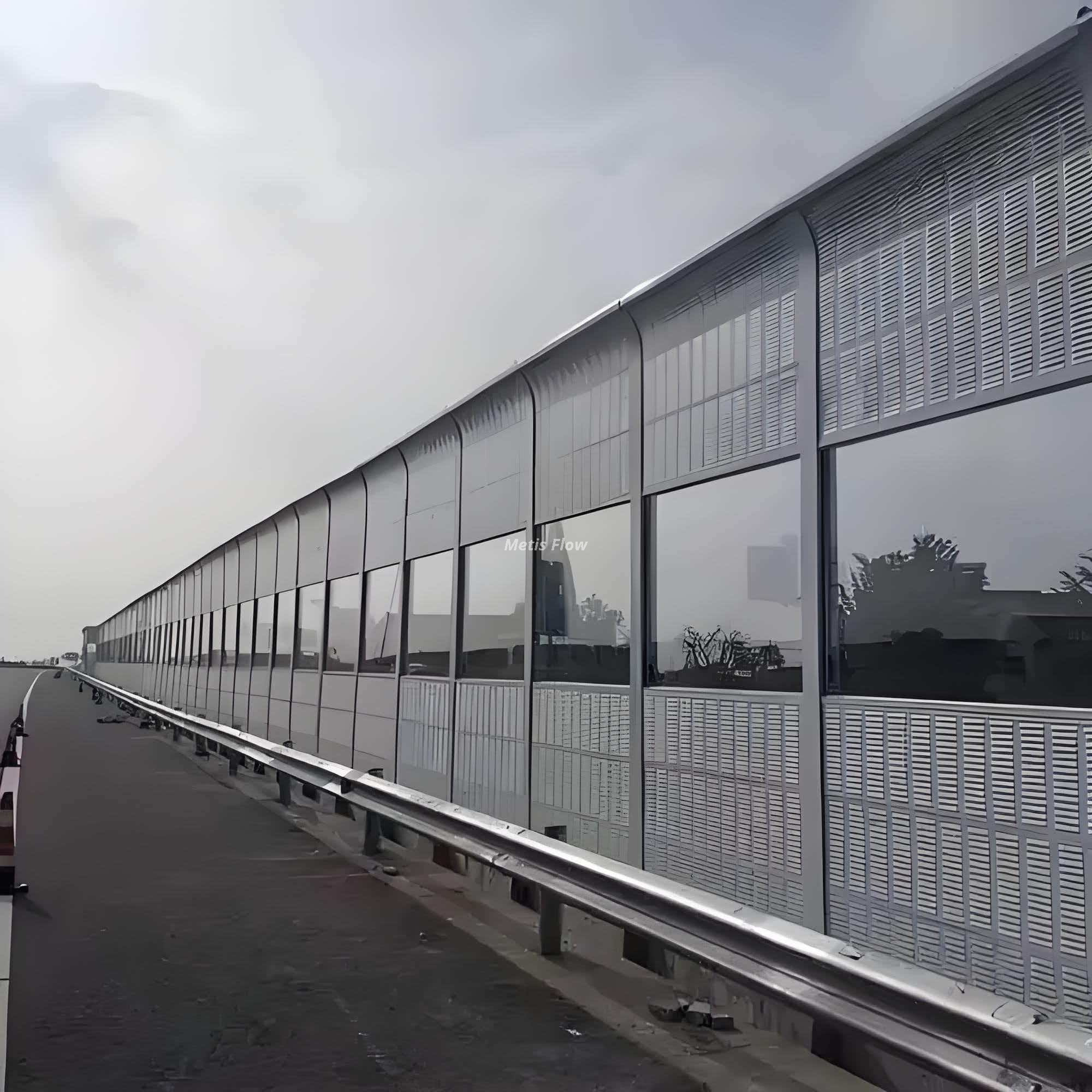

Galvanized Steel Noise Barrier Wall High-Density Soundproof for Highway & Railway

Galvanized Steel Noise Barrier Wall High-Density Soundproof for Highway & Railway

This galvanized steel noise barrier wall provides 30-40dB sound insulation, effectively blocking highway/railway traffic noise, ideal for infrastructure noise control projects.

Quantity:
Availability:





Inquire Add to Basket

Model:
056
Brand:
Metis Flow Metal

Easy-to-Assemble Window Screening Galvanized Mesh Building mesh Wrought Iron Custom Size Iron Horse Barrier Eco-Tourism Area Guardrail Warning Barrier Weather-Resistant Sound Barrier

Products

Product Description

Our galvanized steel noise barrier wall adopts a three-layer composite structure: outer galvanized steel plate (thickness 1.5-2.0mm), middle glass wool sound absorption layer (density 48kg/m³), and inner perforated plate (aperture 3mm). The overall sound insulation effect reaches 35-40dB, effectively blocking low-frequency traffic noise (50-2000Hz) from highways, railways, and interchanges. The galvanized steel surface is treated with electrostatic spray coating, corrosion resistance grade up to C3, service life up to 25 years. Standard module size 2.0m (width) × 3.0m (height), supports on-site splicing to form large-scale noise barrier systems, widely applied to transportation infrastructure noise control projects.
